Green Roof Drainage

Green Roof Drainage


JDR Enterprises, Inc. is a leading manufacturer and supplier of greenroof drain components. As the market for green roofing develops, the proper design and understanding of green roof components is imperative. JDR Enterprises, Inc. encourages greenroof technologies and will continue to do its part by providing key components for greenroofs.



JDR Enterprises, Inc. believes greenroofs are about ‘altitude’ and ‘attitude’, and are a viable solution to the environmental problems we face today.

‘Altitude’, Greenroofs can be found today in nearly all large cities in the world. Greenroofs involve growing plants on rooftops, thus replacing the vegetated footprint that was covered when the building was constructed. Greenroofs are limitless in their applications and design possibilities and include all existing and future roofs in the country. A market that is too large to ignore.

‘Attitude’, the wish for a better quality of life, causes a change in thinking. Greenroofs provide many ecological, economic, and aesthetic solutions (soil, water, climate, flora, and fauna) which help protect the urban environment. Greenroofs can improve the quality of our living and working conditions.

The greenroof idea has become a very important component of the U.S. Green Building Council’s Leadership in Energy and Environmental Design (LEED) national rating system. Increasingly, architects and engineers are incorporating greenroofs into sustainable building designs.

Advantages of Green Roofs:

  • Reduces rainwater run-off
  • Reduction of structure’s heating & cooling costs
  • Protects roofing from UV degradation
  • Additional use of space
  • Reduces heat island effect
  • Reduces sound levels
  • Absorbs carbon dioxide
  • Produces oxygen
  • Provides wildlife habitat

Advantages of JDR Green Roof System:

  • Lightweight and easy to install
  • High strength and crush resistant
  • High flow capacity
  • Built in water retention chambers
  • Pre-assembled as a system
  • Low cost
  • Reduces weight of total system by eliminating sand and gravel
  • Prevents root penetration into drain layer
  • Filters fine particles & ensures drainage efficiency

JDR Enterprises, Inc. strives to tailor greenroof technology to an enlightened American climate.



Each roof is unique. The success of a greenroof depends on the thorough understanding of all components and also the specific needs and conditions of each particular site. All greenroofs contain basic components, and generally have a layering system that begins with the roof deck, followed by a waterproofing membrane, a drain layer, the growing medium and, finally, the plants.

Integration of all layers and selection of appropriate components are critical to the greenroof’s sustainability and performance.

Before the construction begins, it is imperative a licensed structural engineer or architect conduct a structural analysis. Most importantly, they will determine the amount of weight the roof can support.

Waterproofing Membrane:

Correct and meticulous application of the waterproofing membrane is essential to the viability of the greenroof. The ultimate priority is to keep the building watertight. The waterproofing system may consist of a liquid-applied membrane, a specially designed single-ply sheet membrane, or a built-up roof system consisting of multiple layers. To prevent root damage to the waterproofing membrane, some manufacturers incorporate a root-repellant agent in a roof membrane's formulation and others offer a physical root barrier.

Drain Layer:

The drainage layer is installed over the waterproofing membrane to remove excess water and prevent saturation of the growing medium. In some cases, the drainage layer can be designed to retain water and serve as a reservoir for irrigating plants between rainfalls.

The drainage layer is applied over the entire roof area. It forms an extremely stable and pressure resistant sub-base, and sometimes serves as an additional thermal air layer.

A function of the drain layer is the application of a root resistant filter fabric. It is placed directly atop the drain layer for maximum, long-term success of the drainage layer.

The root resistant filter fabric prevents roots from affecting the efficiency of the drainage/aeration layer. It also acts as a filter fabric, preventing fine particles from being washed out of the substrate soil, ensuring efficiency of the drain layer.

Growing Medium:

The growing medium supports plant growth. Good soil composition is vital to the success of plant growth. Soil cannot contain silt that would clog the filter fabric; it must provide a permanent means of supplying internal aeration to prevent compaction of the mix, drain adequately, be able to supply or absorb water and nutrients for the plants to use over time, and it must retain much of its original volume. Unless cost is a great factor, single-source engineered soil pre-mixes are highly recommended.


Vegetation (green) is the most visible layer of the greenroof. Plants add aesthetics and ultimately determine the success or failure of the greenroof.

Plants should be selected that have a low growth height, yet grows, and spreads rapidly. Ideally, plants should have a high drought tolerance, without special needs for irrigation, nutrition, or high maintenance such as pruning. Also, avoid plants with taproots, but instead choose fibrous root systems that will not damage the roof membranes. Finally, avoid plants that generate airborne seeds, as these could invade other landscape plantings.

An experienced horticulturist should be involved in plant selection.



JDR Enterprises, Inc. goal is to manufacture, supply, and promote the most efficient, high quality green roofing drain components and technology to our community.

J•DRAIN can be used on all your greenroof applications:

  • Commercial & Residential
  • Intensive & Extensive Greenroofs
  • Flat & Sloped Roofs
  • Planted & Hardscaped Areas

Why is drainage important?

  • Creates drainage at base of greenroof
  • Ensures aeration of growing media
  • Effective water shedding off roof
  • No standing water at plant layer
  • No ponding at membrane layer

Green Roof Cross Section:

Greenroof cross section


When choosing the right drain component, a number of our products can easily be incorporated into your greenroof.

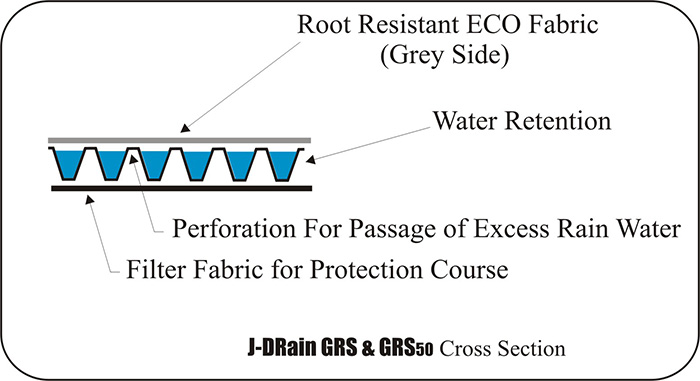

J•DRAIN GRS & 400 RB is our most popular drain products under planted areas on greenroofs. They are pre-assembled drain cores with root resistant filter fabric attached to top layer. The root resistant filter fabric prevents fine particles from being washed out and prevents roots from becoming saturated and affecting the efficiency of the drain layer.


Greenroof cross section



  • Under Vegetated Areas
  • Non-Irrigated Roofs
  • Flat Roofs
  • Shallower Substrates
  • Water Retention


  • Pre-assembled drain system, easy install
  • 100% Polystyrene post-industrial regrind
  • Water retention cups (retains 1.1 GAL/10 Sq.ft.)
  • Low cost
  • Prevents most root penetration into drain layer
  • Reduces weight of total greenroof
  • Filters fine particles
  • Ensures drainage efficiency





  • Sloped Roofs
  • Irrigated Roofs
  • Deeper Soil Substrates


  • Pre-assembled drain system, easy install
  • Polypropylene drain core
  • Low cost
  • Prevents most root penetration into drain layer
  • Reduces weight of total greenroof
  • Filters fine particles
  • Ensures drainage efficiency

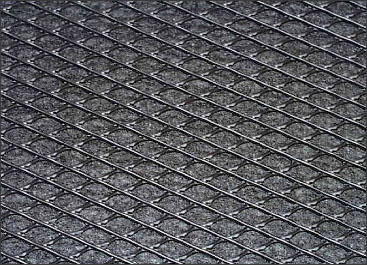

J•DRAIN 302:


We manufacture and supply many drain options for hardscaped areas of your rooftop garden/plaza deck. J•DRAIN 302 is our most popular drain product and is a pre-assembled geonet with attached filter fabric.


  • Under Slab or Poured Concrete
  • Parking Decks
  • Vehicular Traffic
  • Between Roof Membrane & Insulation Board


  • Extremely high compressive strength
  • Flexible
  • Excellent flow rate performance
  • Perfect for heavy duty vehicular traffic
  • Provides two sided drainage

Green Roof Accessories


J•DRAIN J-Barrier

A solid sheet of 20 mil (0.51mm) 100% post-industrial polystyrene regrind. Each roll is 4' wide x 100' long (400 square-feet/roll). A root barrier is a required component and is generally located within or at the membrane.Most membranes (i.e. hot applied rubberized asphalt, cold fluid applied, built-up bitumen, and modified bitumen) will require a root barrier to repel roots.

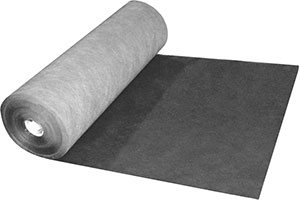

Root Resistant Filter Fabric:

Root Resistant Filter Fabric
  • Triple-spun polymer root resistant fabric
  • 4.5’ x 50’/roll

Depending on plant choices and root behavior, this root resistant fabric will prohibit most, but not all, root growth from typical greenroof plants

Design Considerations

A successful greenroof design relies on a complete understanding of the system mechanics and the relationship between the various integrated components:

  • J•DRAIN products are compatible with all waterproofing systems on the market today
  • For optimum performance, we recommend engineered soils with minimum silt or organics that could clog the filter fabric
  • Before the construction begins, it is imperative a licensed structural engineer or architect conduct a structural analysis to determine weight load considerations
  • Depending on plant choices and root behavior, this root resistant fabric will prohibit most, but not all root growth from typical greenroof plants
  • This root resistant fabric is not to act as substitute for the root barrier that is required at the waterproofing membrane layer. Please consult your waterproofing company for this criterion
  • Direct UV/sunlight can damage J•DRAIN products and can cause deterioration. To alleviate UV/sunlight damage, the engineered soil should be installed to cover J•DRAIN products within 10-14 days

Product Brochures

Please click on below brochure or data sheet for printable pdf:

Product Data Sheets:

CAD Details

Please click on below detail available in either CAD or pdf format:


Roof Garden (Greenroof) g10 001: PDF CAD

Visit Installation Instructions or Architectural Specifications & MSDS for more info.

JDR Enterprises, Inc. is proud to support Greenroofs.com and assist with Episode 1 of their new WebTV series entitled "Sky Gardens ~ Greenroofs of the World". Watch Episode 1: Rock Mill Park in four 10-minute installments on the greenroofs.tv page or on the greenroofs.tv channel on YouTube found at http://www.youtube.com/greenroofstv. All found videos are lined up in order for easy viewing.

Sky Gardens ~ Greenroofs of the World Video



NES evaluated.

Report No. ESR-1901

Visit Installation Instructions or Architectural Specifications & MSDS for more info.
