J Drain 300 Series - Wall Drainage

For Best Pricing Please Call: (800) 950-4972

J-DRAIN 300, 302, & 1000 consists of an HDPE geonet drainage core with a filter fabric bonded to one or both sides. The geonet drainage core is virtually crush proof, yet flexible enough to conform to irregular surfaces. Due to the crush proof nature, geonet drainage composites can be used in the most extreme cases with heavy loads and/or heavy vehicular traffic.

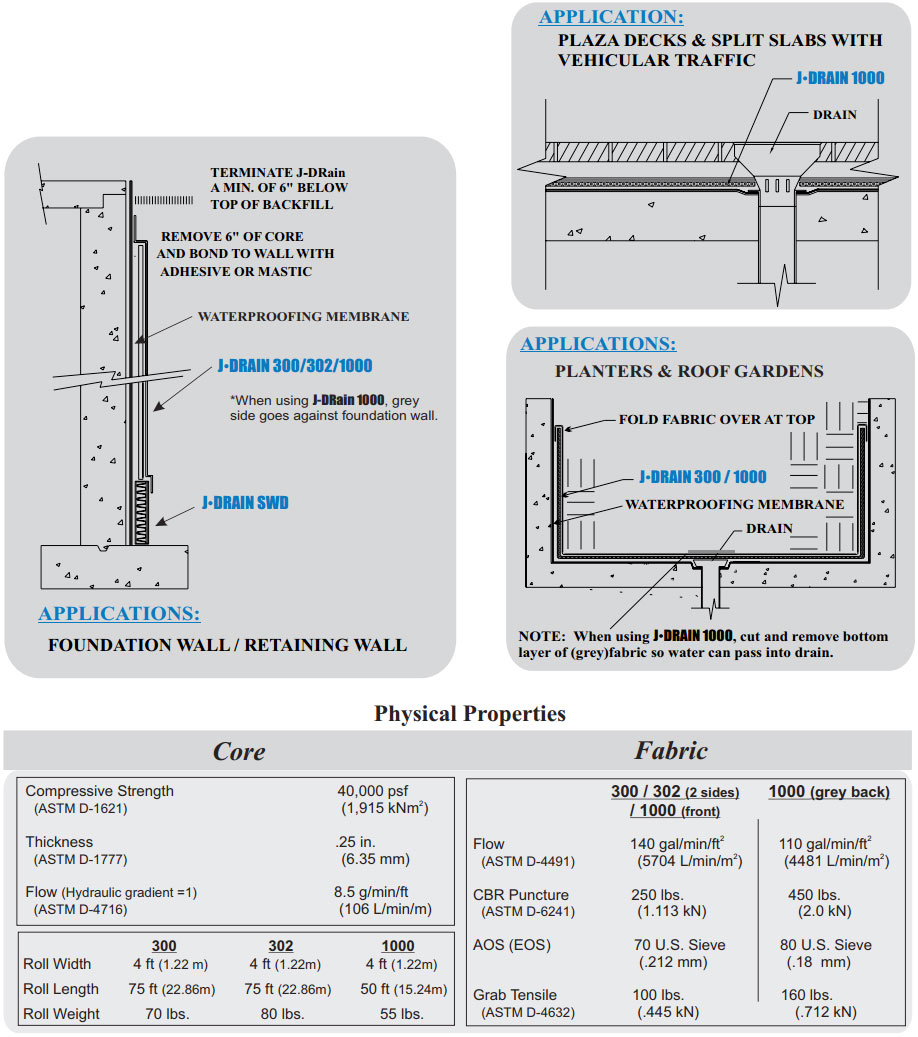

Applications:

• RETAINING WALLS
• PLAZA DECKS
• PLANTERS & GREENROOFS
• UNDER SLABS
• BRIDGE ABUTMENTS

J-Drain 300:

Consists of a heavy duty high density polyethylene geonet drainage core with its ridges heat fused to a layer of non-woven filter fabric. The filter fabric retains soil or sand particles as well as freshly placed concrete or grout, allowing filtered water to pass through to the drainage core. J-DRAIN 300 provides drainage from one side only.

J-Drain 302:

Identical to J•DRAIN 300 in physical properties with the addition of a layer of filter fabric to the back side providing drainage and filtration from both sides.

J-Drain 1000:

Identical to J-DRAIN 300 in physical properties with the addition of a layer of heavy duty grey fabric bonded to the back side providing protection and cushion for waterproofing systems requiring a protection layer.

Additional Information:

• Product Datasheet (PDF)
• J-Drain Product Catalog (PDF)
• General Instructions
• Retaining, Foundation, & Lagging Wall
