Transportation Trench Drainage

Transportation Trench Drainage

Application Description:

Drainage systems used to capture, intercept and channel surface and subsurface water in landscape applications are generically known as French drains, drain tile, burrito drains and trench drains. They are constructed by digging a shallow trench, lining it with filter fabric, filling it with drainage aggregate and placing a perforated pipe within the drainage aggregate to direct the water flow. Drainage composites provide a lower cost and more efficient alternative to the traditional French drain systems without the cost and expense of installing drainage aggregate and perforated pipe.

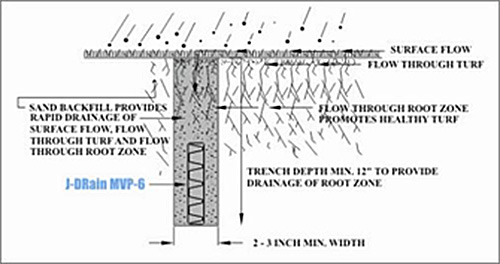

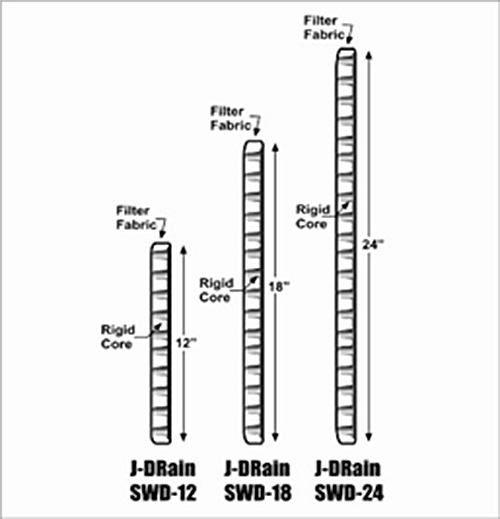

J•DRAIN drainage composites are engineered to capture water and efficiently channeling the water away in landscape applications. The three dimensional core creates a high compressive strength and high flow capacity drainage channel and the fused filter fabric prevents soil intrusion into the flow channel.

Product Recommendation

Standard recommendations. Please contact a JDR representative for the product to meet specific requirements:

J•DRAIN
SWD

J•DRAIN SWD

J•DRAIN
MVP

J•DRAIN SWD



Product Brochure

Please click on below brochure or data sheet for printable pdf:

Division 2 Civil/Highway (AASHTO M 288):



J•DRAIN SWD

J•DRAIN SWD







NES evaluated.

Report No. ESR-1901

Visit Installation Instructions or Architectural Specifications & MSDS for more info.
