Transportation Edge Drain

Transportation Edge Drain

Application Description:

Effective drainage in highway construction is critical to minimize the effects of water damage. Controlling water that has collected at the pavement edge shoulder from migrating into the pavement subgrade is a critical design consideration. Water saturated subgrades can reduce the integrity of the pavement materials which lead to reduced pavement life, potholes, cracking pavement and potentially pavement failure.

J•DRAIN drainage composites are engineered to capture water and efficiently channeling the water away from the roadway. The three dimensional core creates a high compressive strength and high flow capacity drainage channel and the fused filter fabric prevents soil intrusion into the flow channel.

Product Recommendation

Standard recommendations. Please contact a JDR representative for the product to meet specific requirements:




Product Brochure

Please click on below brochure or data sheet for printable pdf:

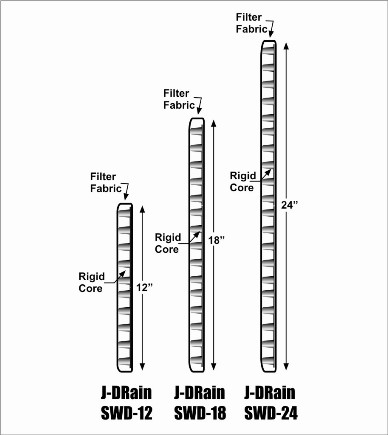

edge drain swd


CAD Details

Please click on below detail available in either CAD or pdf format:

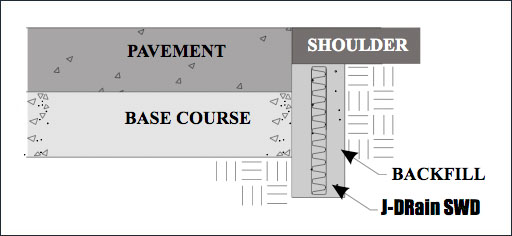

Highway Edge v10 051: PDF CAD

edge drain


NES evaluated.

Report No. ESR-1901

Visit Installation Instructions or Architectural Specifications & MSDS for more info.
