J-DRAIN 700 Series performs a multi-faceted role by providing protection for waterproofing systems and collecting excess water in plaza decks, split slabs, planters, roof top gardens, and other horizontal surfaces. Planting soil is retained while allowing water to pass into the drainage core . The collected water is then conveyed to a proper collection system.

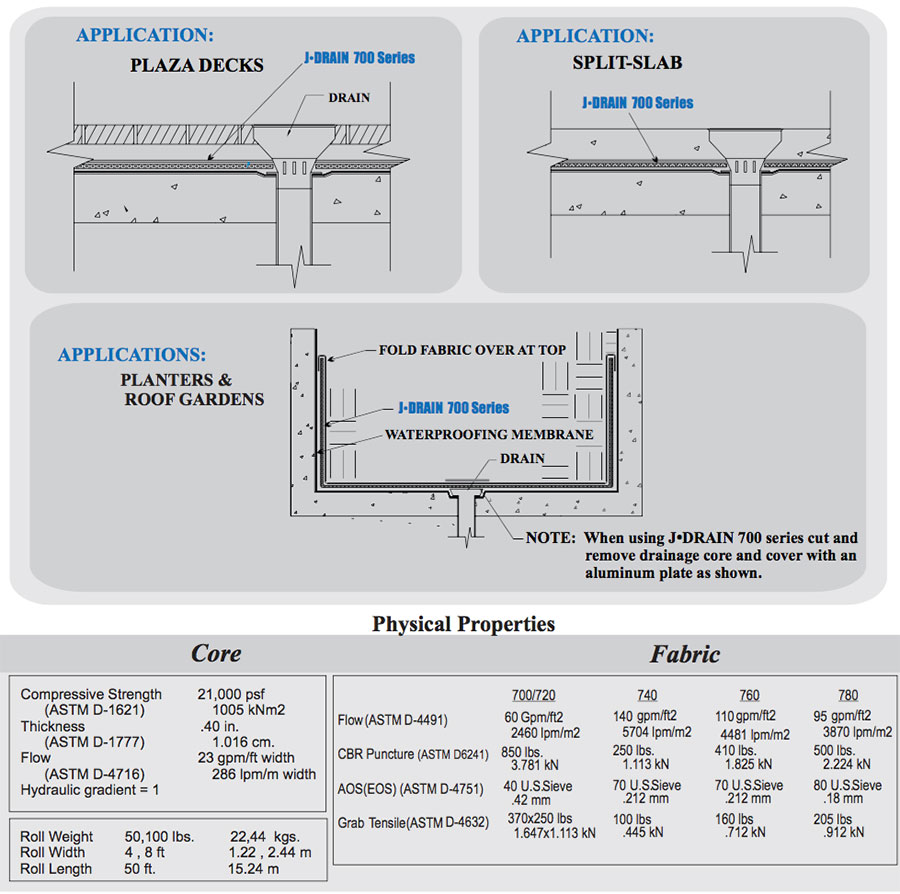

Applications:
- PLANTERS
- ROOF GARDENS
- PLAZA DECKS
- SPLIT-SLABS
J-Drain 700:
Consists of a heavy duty impermeable polymeric sheet cuspated under heat and pressure to form a high flow dimpled drainage core. The core is then bonded to a layer of woven filter fabric. The filter fabric retains soil or sand particles as well as freshly placed concrete or grout, allowing filtered water to pass into the drainage core.
J-Drain 720:
The identical properties as J-DRAIN 700 with the addition of a protection sheet bonded to the back side of the cuspated core providing for soft membrane waterproofing systems. J•DRAIN 720 is compatible with waterproofing without the use of a protection board.
J-Drain 740:
Consists of a heavy duty impermeable polymeric cuspated sheet identical to J-DRAIN 700, but bonded to a layer of non-woven filter fabric. (4 oz/sq yd)
J-Drain 760:
Consists of a heavy duty impermeable polymeric cuspated sheet identical to J-DRAIN 700, but bonded to a layer of non-woven filter fabric. (6 oz/sq yd)
J-Drain 780:
Consists of a heavy duty impermeable polymeric cuspated sheet identical to J-DRAIN 700, but bonded to a layer of non-woven filter fabric. (8 oz/sq yd)
