J Drain 500 Series - Wall Drainage

For Best Pricing Please Call: (800) 950-4972

J-DRAIN 500 consists of a punched polymeric sheet cuspated under heat and pressure to form a high flow dimpled drainage core. The core is punched to allow double sided drainage, then bonded to a layer of nonwoven filter fabric on each side of the core. The filter fabric retains soil or sand particles as well as freshly placed concrete or grout, allowing filtered water to pass into the drainage core. Collected water is then conveyed to J•DRAIN SWD 6 or SWD 12 collection systems.

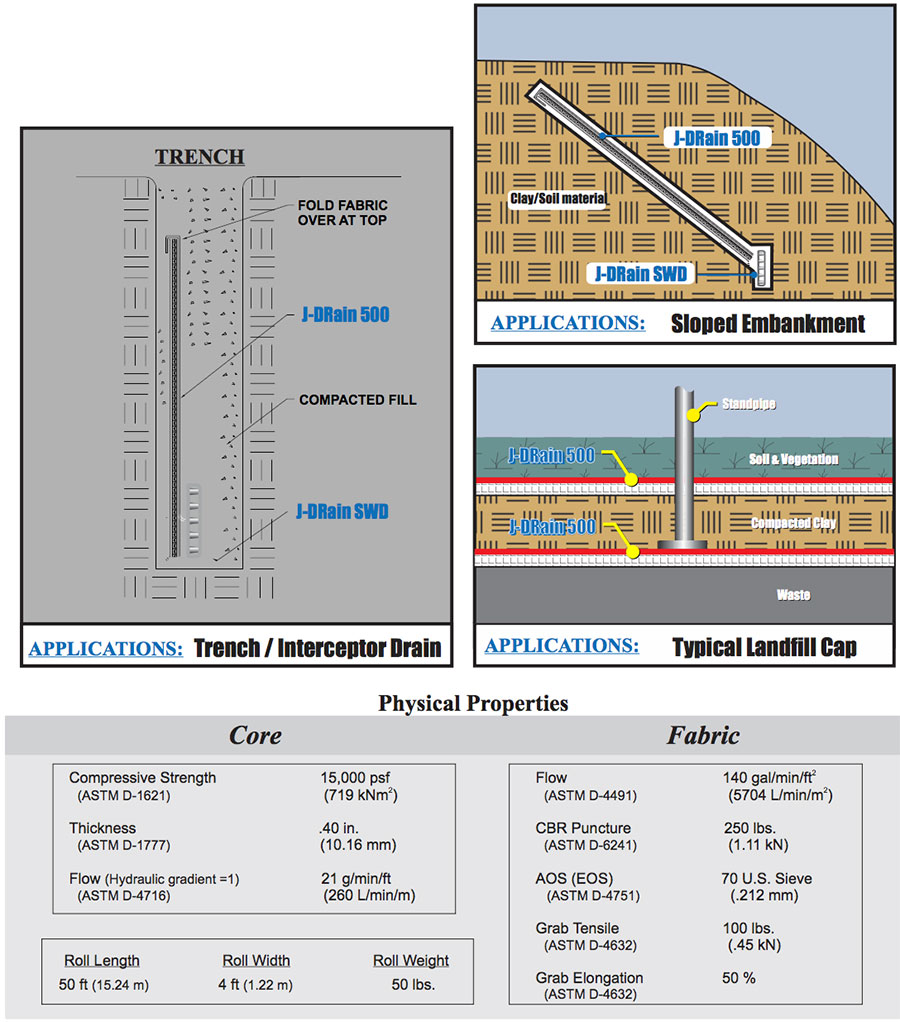

Applications:

• TRENCH DRAINS
• INTERCEPTOR DRAINS
• LANDFILL ENCLOSURES
• SLOPED EMBANKMENTS

Usage:

J-DRAIN 500 maintains a very high flow rate while providing a higher compressive strength for greater depths. It is designed for use where double sided drainage is needed. Ideal for trench drains, interceptor drains, sloped embankments, and landfill enclosures.

Additional Information:

• Product Datasheet (PDF)
• J-Drain Product Catalog (PDF)
• General Instructions
• Retaining, Foundation, & Lagging Wall
